1. Printer Introduce:
T-shirt Printer as known as Direct to Garment Printer (DTG) printer, it is a machine that directly prints ink on garments. Its performance is stable, can print bright images on any light-colored, dark-colored garments or fabric. It can print garment materials like cotton, polyester, spandex, silk, nylon, T-shirt, garment, fabric, Jeans, coat etc.
Printer use water based textile ink, after washing, printed images color are not fade.
DTG inkjet printer no need plate making, no need color registration, and imaging once. For multi-color, gradient, DTG printer has unique advantage.
A3 Size DTG Printer Technical Parameters:
inkMacSystemFont, "Segoe UI", Roboto, "Helvetica Neue", Arial, sans-serif, "Apple Color Emoji", "Segoe UI Emoji", "Segoe UI Symbol"; font-size: 14px; border: 1pt solid windowtext;">Model
HZ-DTGA3-8C t-shirt printer
Printer head
Epson DX5 printhead
Printing process
Micro Piezo 180 nozzles*8 colors
Minimum Ink Droplet Size
1.5 Pico liters
Print Resolution
5760*1440dpi
Max printing size
330*600mm
Printer platform size
330*800mm
Print Thickness
0 -180mm
Print Speed
Print an A4 paper size image on light color t-shirt need 60 seconds
Height Adjustment
Semi-automatic, height sensing, photoelectric shooting limit switch
Ink consumption
Approximately 10ml ink of each color to print one square meters image
Ink type
Water based textile ink
Ink Color
Cyan, Magenta, Yellow, Black, 4white (CMYK+4White)
or Cyan, Magenta, Yellow, Black, Light cyan, Light Magenta, 2White (CMYK+LC+LM+2White)
Ink Cartridge
Continuous Ink Supply System (CISS)
Platform in and out
Automatic, laser positioning, accurate
Platform lift
Automatic, T-type screw
Software
AcroRip ( English, Korean, Chinese, Japanese Language)
Working environment
Temperature: 10°-35° C (50°-95° F), Humidity: 20%-80%RH
Working voltage
110V/220V AC
power
Max 35W
data transmission
high speed USB 2.0
Operation System
Windows 7 and up (not compatible with MAC)
Printer Weight
Net Weight: 60kg Gross Weight: 90kg
Machine Size
Net size: 630*800*580mm Package size: 740*920*760mm

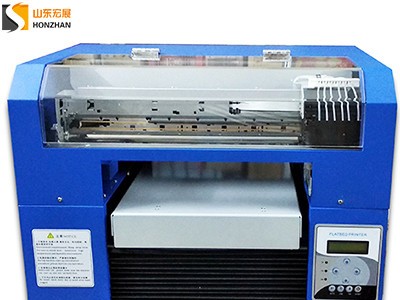

Honzhan HZ-DTGA3-8C T-shirt Printer, DTG Printer, Direct to Garment Printer with Epson DX5 printhead
